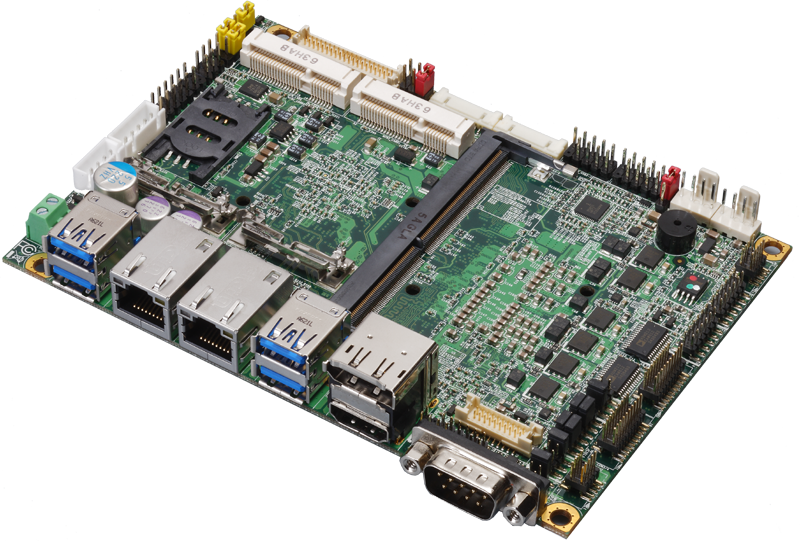

SBC 3.5" : LE-37I : Intel® Skylake(6th) H-Series Mobile Processor
3.5" Miniboard embedded Intel® Skylake Core™ H-Series processors, Support for DDR4 SO-DIMM 2133 MHz up to 16 GB. HDMI, LVDS, Display port, DVI, CRT, HD audio, two Gigabit ethernet, 2 x SATA3, 4 x USB3.0, 4 x USB2.0, 5 x RS232, 1 x RS232/422/485, 8-bit GPIO, 2 x Mini-PCIe sockets, 1 x SIM socket, 1 x LPC, DC 9V ~ 24V input

Key Feature



  • CPUIntel® Skylake 6th generation Intel® Core™ H-series Mobile processor, FCBGA1440 package.

  • MemoryOne DDR4 2133 MHz SO-DIMM up to 16 GB.

  • Integrated Graphics: Intel® Gen 9 integrated HD Graphics.

  • Display port interface: Onboard Display port connector.

  • HDMI interface: Onboard HDMI connector.

  • LVDS interface: Onboard 18/24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply.

  • LAN Interface1 x Intel® I210 Gigabit LAN and 1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT11).

  • Serial ATASupport 2 x SATA3 with 600MB/s (6Gb/s) transfer rate, support RAID 0,1.

  • Audio: Realtek ALC262 HD Audio.

  • Internal I/O Port: 1 x PS/2, 4 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x Audio, 1 x SMBUS, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 1 x CRT, 1 x DVI, 4 x USB 2.0, 2 x SATA3, 1 x DC Out,.

  • External I/O Port: 1 x RS232, 1 x HDMI port, 1 x Display port, 2 x LAN, 4 x USB 3.0.

  • Extended interfaceTwo PCIE Mini card slots support mSATA, one SIM socket.

  • GPIO interface: Onboard programmable 12 pin-header, 8-bit Digital I/O interface.

  • Power RequirementDC Input 9~24V.


  Specification


Form Factor

3.5 inch miniboard

Processor

Intel® Skylake 6th generation Intel® Core™ H-series Mobile processor, FCBGA1440 package

Memory

1 x DDR4 2133 SO-DIMM up to 16GB. Support Non-ECC.

Integrated Graphics

Intel® Gen 9 integrated HD Graphics

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

Support 2 x SATA3 with 600MB/s (6Gb/s) transfer rate, support

RAID 0,1.

 Display Interface

Intel® HD Graphics Technology

1 x HDMI (Rear I/O HDMI connector)

1 x Display Port (Rear I/O Port)

1 x LVDS (One onboard 24-bit dual channel connector with +3.3/+5/+12V supply)

1 x CRT (Onboard 2x8 pin-header)

1 x DVI (Onboard 2x10 pin-header)

LVDS Interface

One onboard 18/24-bit dual channel LVDS connector with +3.3/+5/+12V supply

Audio Interface

Realtek ALC262 HD Audio

LAN Interface

1 x IntelR I210 Gigabit Ethernet Controller

1 x IntelR I219-LM Gigabit PHY Ethernet Controller

GPIO Interface

Onboard programmable 12 pin-header, 8-bit Digital I/O interface

Extended Interface

Two PCIE Mini card slots support mSATA, one SIM socket.

Internal I/O Port

1 x PS/2, 4 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x Audio, 1 x SMBUS, 1 x LVDS, 1 x LCD inverter, 1 x CRT, 1 x DVI, 1 x LPC, 4 x USB 2.0 , 2 x SATA3 and 1 x DC Out

External I/O Port

1 x RS232, 1 x HDMI port, 1 x Display port, 4 x USB 3.0, 2 x LAN

Power Requirement

DC Input 9~24V

Board Dimension

146mm x 101mm (L x W)

Temperature

Operating within 0°C ~ 60°C (32°F ~ 140°F)

Storage within -20 ~ 80°C (-4°F ~ 176°F)





  Ordering Guide

LE-37I3S

i3-6100E (TDP 35W), DisplayPort, CRT, DVI, HDMI, LVDS, USB2.0, USB3.0, MinIPCIe, mSATA, LAN, Audio, SATA3, COM, LCD inverter, LPC, GPIO, PS/2, SMBUS, DC input 9~24V, Heat  spreader

LE-37I5S

i5-6440EQ (TDP 45W), DisplayPort, CRT, DVI, HDMI, LVDS, USB2.0, USB3.0, MinIPCIe, mSATA, LAN, Audio, SATA3, COM, LCD inverter,  LPC, GPIO, PS/2, SMBUS, DC input 9~24V, Heat spreader

LE-37I7S

i7-6822EQ (TDP 25W), DisplayPort, CRT, DVI, HDMI, LVDS, USB2.0, USB3.0, MinIPCIe, mSATA, LAN, Audio, SATA3, COM, LCD inverter,  LPC, GPIO, PS/2, SMBUS, DC input 9~24V, Heat spreader

LE-37I3F

Same as LE-3713S, but with Cooler Fan

LE-37I5F

Same as LE-3715S, but with Cooler Fan

LE-37I7F

Same as LE-3717S, but with Cooler Fan
