현재위치 : 제품소개 》메인보드 mini-itx

TOTAL ARTICLE : 52, TOTAL PAGE : 1 / 6
전체보기 Mobile CPU | Desktop CPU | AMD | VIA | Built-in CPU |

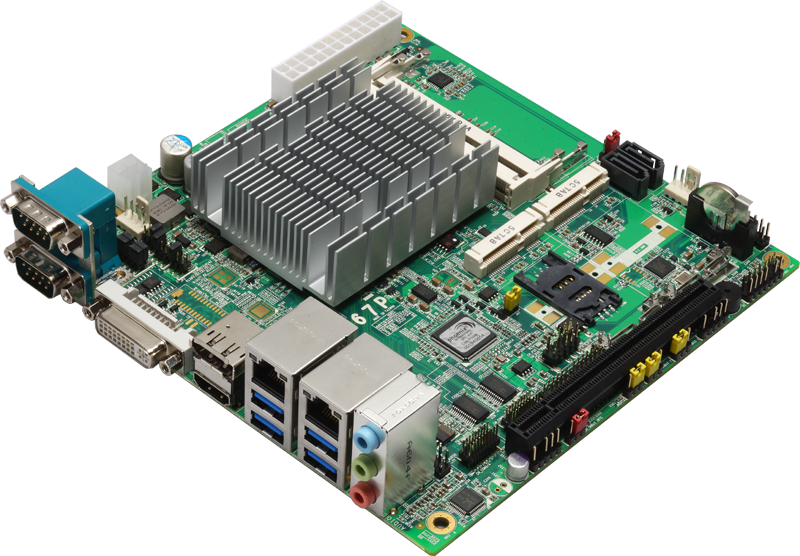

Built-in CPU : LV-67P Intel® Braswell Series Processor
Mini-ITX mobile Intel® Braswell Series Processor, Support for two DDR3L SO-DIMM MHz to 8GB. Onboard DVI, HDMI, optional CRT / LVDS / Display port, HD Audio, 2 x Intel® Gigabit LAN, SATA3, 5 x RS232, 1 x RS232/422/485, 4 x USB2.0, 4 x USB3.0, 8-bit GPIO, PCI-Express X16 slot, 1 x Mini-PCIe , 1 x mSATA.
Key Feature



  • CPU: Intel® Braswell Series Processor.

  • Memory: 2 x DDR3L (support 1.35V) 1600 SO-DIMM up to 8GB.

  • Integrated Graphics: Intel® Braswell SoC integrated HD Graphics.

  • DVI interface: Onboard DVI connector.

  • HDMI interface: Onboard HDMI connector.

  • CRT: Optional onboard 2x8 CRT connector (Only LV-67PNT & LV-67PET have).

  • Display port interface: Optional Display port connector (Only LV-67PNP & LV-67PEP have).

  • LVDS interface: Optional onboard 18/24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply (Only LV-67PNX & LV-67PEX have).

  • LAN Interface: 2 x Intel® I210 Gigabit LAN.

  • Serial ATASupport 2 x SATA3 with 600MB/s (6Gb/s) transfer rate, no support RAID 0,1. (SATA3-2 cannot use when JMSATA's jumper cap on pin1 and pin2)

  • Audio: Realtek ALC262 HD Audio.

  • Internal I/O Port: 1 x PS/2, 4 x RS232, 1 x GPIO, 1 x Audio, 1 x SMBUS, 1 x LVDS(Optional), 1 x LCD inverter(Optional), 1 x LPC, 4 x USB 2.0, 1 x CRT(Optional), 2 x SATA3 and 1 x DC_IN.

  • External I/O Port: 1 x RS232, 1 x RS232/422/485, 1 x DVI, 1 x HDMI port, 1 x Display port(Optional), 2 x RJ45 LAN ports, 4 x USB 3.0,  1 x Audio.

  • Extended interface: One PCIE Mini card slot, one mSATA, one SIM socket. (mSATA cannot use when JMSATA's jumper cap on pin2 and pin3)

  • GPIO interface: Onboard programmable 12 pin-header, 8-bit Digital I/O interface.

  • Power RequirementStandard 24-pin ATX power supply or 4-pin 6~30V.


  Specification


Form Factor

Mini-ITX Motherboard

Processor

Intel® Braswell Series Processor N3710/X5-E8000, FCBGA1170 package

Memory

2 x DDR3L (support 1.35V) 1600 SO-DIMM up to 8GB. (Unbufferred,  none-ECC memory supported only)

Integrated Graphics

Intel® HD Graphics

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

Support 2 x SATA3 with 600MB/s (6Gb/s) transfer rate, no support

RAID 0,1. (SATA3-2 cannot use when JMSATA's jumper cap on pin1 and pin2)

 DVI Interface

Onboard DVI connector

 HDMI Interface

Onboard HDMI connector

 CRT Interface

Onboard 16-pin CRT interface (Only LV-67PNT & LV-67PET have)

Display port Interface

Onboard Display port connector (Only LV-67PNP & LV-67PEP have)

LVDS Interface

One onboard 18/24-bit dual channel LVDS connector with +3.3/+5/+12V supply (Only LV-67PNX & LV-67PEX have)

Audio Interface

Realtek ALC262 HD Audio

LAN Interface

2 x Intel® I210-AT Gigabit LAN

GPIO Interface

Onboard programmable 12 pin-header, 8-bit Digital I/O interface

Extended Interface

One PCIE Mini card slot, one mSATA and one SIM socket.

(mSATA cannot use when JMSATA's jumper cap on pin2 and pin3)

Internal I/O Port

1 x PS/2, 4 x RS232, 1 x GPIO, 1 x Audio (MIC-in & Line-out), 1 x SMBUS, 1 x LVDS(Optional), 1 x LCD inverter(Optional), 1 x CRT(Optional), 1 x LPC, 4 x USB 2.0, 1 x PS/2 (Keyboard & Mouse), 2 x SATA3 and 1 x DC_IN

Rear I/O Port

1 x RS232, 1 x RS232/422/485, 1 x DVI, 1 x HDMI port, 1 x Display port(Optional), 2 x RJ45 LAN ports, 4 x USB 3.0, 1 x Line-in, 1 x Line-out, 1 x MIC-in

Power Requirement

Standard 24-pin ATX power supply or 4-pin 6~30V

Board Dimension

146mm x 101mm (L x W), 1.6mm

Temperature

Operating within 0°C ~ 60°C (32°F ~ 140°F)

Storage within -20 ~ 80°C (-4°F ~ 176°F)





  Ordering Guide

LV-67PNX

Intel® Pentium® Core Processor N3710,  LVDS, HDMI, DVI, USB2.0, USB3.0, MinIPCIe, mSATA, LAN, Audio, SATA3, COM, LCD inverter, LPC, PS/2, SMBUS, Standard 24-pin ATX power supply or 4-pin 6~30V.

LV-67PNP

Intel® Pentium® Core Processor N3710,  DisplayPort, HDMI, DVI, USB2.0, USB3.0, MinIPCIe, mSATA,  LAN, Audio, SATA3, COM, LCD inverter, LPC, PS/2, SMBUS, Standard 24-pin ATX power supply or 4-pin 6~30V.

LV-67PNT

Intel® Pentium® Core Processor N3710, CRT, HDMI, DVI, USB2.0, USB3.0, MinIPCIe, mSATA,  LAN, Audio, SATA3, COM, LCD inverter, LPC, PS/2, SMBUS, Standard 24-pin ATX power supply or 4-pin 6~30V.

LV-67PEX

Intel® Atom® Core Processor X5-E8000, LVDS, HDMI, DVI, USB2.0, USB3.0, MinIPCIe, mSATA, LAN, Audio, SATA3, COM, LCD inverter, LPC, PS/2, SMBUS, Standard 24-pin ATX power supply or 4-pin 6~30V.

LV-67PEP

Intel® Atom® Core Processor X5-E8000, DisplayPort, HDMI, DVI, USB2.0, USB3.0, MinIPCIe, mSATA, LAN, Audio, SATA3, COM, LCD inverter, LPC, PS/2, SMBUS, Standard 24-pin ATX power supply or 4-pin 6~30V.

LV-67PET

Intel® Atom® Core Processor X5-E8000, CRT, HDMI, DVI, USB2.0, USB3.0, MinIPCIe, mSATA, LAN, Audio, SATA3, COM, LCD inverter, LPC, PS/2, SMBUS, Standard 24-pin ATX power supply or 4-pin 6~30V.

 Built-in CPU : LV-67T Intel® Skylake (6th) Core™ U-series Processor
Mini-ITX mobile Intel® Skylake™ U-series Processor,
Support for two DDR4 SO-DIMM 1866/2133 MHz to 32GB.
Onboard Display port, DVI-I, CRT, LVDS, HD Audio,
1 x Intel® Gigabit PHY LAN,1 x Intel® Gigabit LAN, SATA3, 5 x RS232,
1 x RS232/422/485, 4 x USB2.0, 4 x USB3.0, 8-bit GPIO, 1 x PCI slot, ...more
 Desktop CPU : LV-67S Intel® Skylake (6th) Core™ i7 / i5 / i3 S-series and Xeon® E3-1200 v5 Processor LGA1151 CPU
Mini-ITX desktop Intel® Skylake™ i7 / i5 / i3 S-series and Xeon® E3-1200 v5 Processor,
FCLG1151 package. Support for two DDR4 DIMM 1866 / 2133 MHz to 32GB.
Onboard Display port, DVI-I, HDMI, CRT, LVDS, HD Audio,
1 x Intel® Gigabit PHY LAN,1 x Intel® Gigabit LAN, SATA3, 5 x RS232,
1 x RS232/422/485, 4 x USB2.0, 6 x USB3.0,8-bit GPIO, PCI-Express X16 slot, ...more
 Built-in CPU : LV-67R Intel® Skylake (6th) Core™ i7 / i5 / i3 H-series Processor
Mini-ITX mobile Intel® Skylake™ i7 / i5 / i3 H-series Processor,
Support for two DDR4 SO-DIMM 2133 MHz to 32GB.
Onboard Display port, DVI-I, HDMI, CRT, LVDS, HD Audio,
1 x Intel® Gigabit PHY LAN,1 x Intel® Gigabit LAN, SATA3, 5 x RS232,
1 x RS232/422/485, 4 x USB2.0, 6 x USB3.0,8-bit GPIO, PCI-Express X16 slot, ...more
 Built-in CPU : LV-67P Intel® Braswell Series Processor
Mini-ITX mobile Intel® Braswell Series Processor,
Support for two DDR3L SO-DIMM MHz to 8GB.
Onboard DVI, HDMI, optional CRT / LVDS / Display port, HD Audio,
2 x Intel® Gigabit LAN, SATA3, 5 x RS232, 1 x RS232/422/485, 4 x USB2.0,
4 x USB3.0, 8-bit GPIO, PCI-Express X16 slot, 1 x Mini-PCIe , 1 x mSATA. ...more
 Built-in CPU : LV-67O Intel® Celeron® J1900 , N2930 & Atom® E3845 Processor
Mini-ITX embedded Intel® Celeron™ J1900 / N2930
& Atom™ E3845 Mobile processor.
Support for two DDR3L SO-DIMM 1066/1333 MHz up to 8 GB.
Onboard Display port, DVI, CRT, 2 x LVDS, HD Audio, SATAII
2 x Intel® Gigabit LAN, 5 x RS232, 1 x RS232/422/485, ...more
 Desktop CPU : LV-67N Support 4th Generation Intel®Core™ i7 / i5 / i3 LGA1150 CPU
Mini-ITX support 4th generation Intel® Core™ i7 / i5 / i3  LGA 1150 processor
Intel® Q87 Express chipset, DDR3 1333/1600 MHz up to 16 GB,
Onboard VGA, DVI, LVDS, Display port, HD Audio, 2 x Intel® Gigabit LAN,
 4 x SATA with RAID ,1 x RS232/422/485, 3 x RS232, 4 x USB2.0, 6 x USB3.0,
8-bit GPIO, PCI-Express X16 slot, Mini-PCIe . ...more
 Mobile CPU : LV-67M Support 4th Generation Intel®Core™ i7 / i5 / i3 BGA1364 CPU
Mini-ITX support 4th generation Intel® Core™ i7 / i5 / i3 PCBGA 1364 processor
Intel® QM87 Express chipset, DDR3L SO-DIMM 1333/1600 MHz up to 16 GB,
Onboard VGA, DVI, LVDS, Display port, HD Audio, 2 x Intel® Gigabit LAN,
 4 x SATA with RAID ,1 x RS232/422/485, 5 x RS232, 4 x USB2.0, 6 x USB3.0,
8-bit GPIO, PCI-Express X16 slot, 2x Mini-PCIe . ...more
 AMD : LV-683 Onboard AMD Dual-core T56N 1.65 GHz
Onboard AMD Dual-core T56N 1.65 GHz
AMD A55E FCH chipset, DDR3 1066/1333 MHz up to 8.0 GB,
Support VGA, LVDS, DVI, HD audio, 2 x Intel® Giga LAN, 4 x SATA, 1 x SIM
1 x RS232/422/485, 5 x RS232, 10 x USB2.0, LPT, 8-bit GPIO, SMBUS
PCI slot, Mini-PCIe & Mini-PCI sockets, ATX P/S or Full range DC 5V ~ 24V input ...more
 Built-in CPU : LV-67L Intel® Celeron® Processor 807UE or 847E
Mini-ITX supports Intel® Sandy Bridge Processor 807UE/847E,
Intel® HM65 Express chipset, DDR3 1066/1333 MHz up to 4.0 GB (LV-67LNB),
or 16GB (LV-67LBU),Support CRT, DVI, LVDS, 2 x Gigabit LAN,10 x USB2.0,
HD Audio, PCI-Express X16 ,Serial ATAII ,Serial ATAIII, PCIE mini card, LPC, mSATA, Standard 24-pin ATX P/S or Full ranged 9V~24V(±5%) DC Input
 Mobile CPU : LV-67K Support 3rd Generation Intel®Core™ i7 / i5 / i3 Mobile processor
Mini-ITX support 3rd generation Intel® Core™ i7 / i5 / i3 Mobile processor
Mobile Intel® QM77 Express chipset, DDR3 1066/1333/1600 MHz up to 16 GB,
Onboard VGA, LVDS, DVI, HD audio, 2 x Gigabit ethernet, 6 x SATA
1 x RS232/422/485, 5 x RS232, 6 x USB2.0, 4 x USB3.0, SPDIF, 8-bit GPIO,
PCI-Express X16 slot , 2 x Mini-PCIe sockets , 1 x SIM socket ...more
